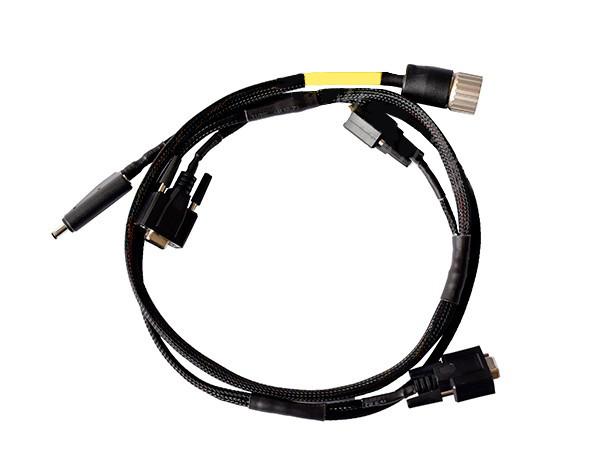

Yellow and green double twisted braided shield DB head -- surveying equipment wiring harness

1. Product description

Yellow and green double twisted braided shield DB head -- surveying equipment wiring harness a double stranded structure means that two wires

are twisted together in a spiral manner. The twisted-pair structure reduces electromagnetic interference and signal crosstalk, providing more stable

and reliable signal transmission. The harness has a braided shielding layer, usually composed of metal braided mesh or foil layer. The braided

shielding layer can effectively block external electromagnetic interference and ensure the quality and stability of the signal. One end of the harness

is equipped with a DB head connector. The DB head is a common connector type with multiple pins and jacks that are used to connect and

transmit signals reliably. It is often used to connect computer equipment and measuring equipment.

Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

3. Picture of real products

4. Application area

I: Industrial automation: In the field of industrial automation, wiring harnesses for measuring equipment can be used to connect various sensors, instruments, and control devices. For example, sensors for temperature measurement, pressure measurement, liquid level measurement, flow measurement, etc., can be connected to the control system through this harness to achieve accurate data acquisition and monitoring.

II: Medical diagnostic devices: Medical diagnostic devices, such as blood pressure meters, blood glucose meters, thermometers, etc., usually need to be connected to sensors and control units for accurate physiological parameter measurements. The harness can be used to connect the sensors and control units of these devices, ensuring reliable signal transmission and measurement accuracy.

III: Data acquisition system: Data acquisition system is used to collect and record various environmental parameters and signals. The wiring harness of the measuring equipment can connect sensors, data collectors, and data processing units, supporting various data acquisition applications, such as environmental monitoring, meteorological measurement, and structural monitoring.

5. Feature

I: Braided shielding: The harness has a braided shielding layer, usually composed of metal braided mesh or foil layer. The braided shielding layer can effectively block external electromagnetic interference and ensure the quality and stability of the signal.

II: Anti-interference performance: braided shielding and twisted-pair structure provide strong anti-interference ability, which can reduce the influence of external electromagnetic interference on the signal. This is important for measuring devices, which require accurate signal transmission and stable measurement results.

6. Main products

I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.

II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.

III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compress or harness.

Jiangsu Shineplus Precision Technology Co., Ltd. was established in 2021, located in Baipu, Rugao City, Nantong Town, 3000M² production

area. Specializing in the design and manufacture of cable components, designed to provide customers with a comprehensive wiring system.

The main product directions are: green energy, industrial automation equipment, medical physiotherapy Equipment and medical imaging

equipment, rail transit, communication facilities equipment wiring system and other fields.

In addition, Guangdong Xinfusheng Connection Technology Co., LTD., established in 2020, is located in Guangdong Hong Kong Industrial Park, Humen Town, Dongguan City, with a production area of 4500M² and 150 employees. Specializing in the design and manufacture of cable components, aiming to provide customers with comprehensive wiring system solutions, the main product directions are: mainly in the field of medical and health products, but also involving green energy, industrial automation, high precision equipment, communication connection and other fields.
