3-core carnoon head + 6-core air-plug insulated anti-interference split two-in-one battery wire harness
1. Product description
3-core carnoon head + 6-core air-plug insulated anti-interference split two-in-one battery wire harness one end of the harness is equipped with a 3-core Canon head, which is usually used to connect the power socket or the power interface of the device to transmit the corresponding polarity of the power supply. The other end is equipped with a 6-core airplug, which is usually used to connect the signal interface of the device for transmitting signals, data, or other circuits with specific functions. The battery harness uses a split two-in-one design, that is, two different functional wires (3-core and 6-core) are combined in the same harness, providing a convenient connection solution. This design simplifies the wiring arrangement and installation process and reduces the number of cluttered wiring harnesses.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
Product Name | 3-core carnoon head + 6-core air-plug insulated anti-interference split two-in-one battery wire harness |
Harness material | Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
Product application | Portable electronic devices, power tools, drones, electric vehicles, solar and energy storage systems, and others |
Length, color | Customized according to customer needs |
Samples | Samples confirmed first before mass production |
Serve | Whole-course specially-assigned follow-up, to provide fast and efficient service |
Test requirement | Salt spray test: ≥48H,continuity test |
MOQ | Negotiable |
After-sales service | Authentic guaranteed, factory outlets center |

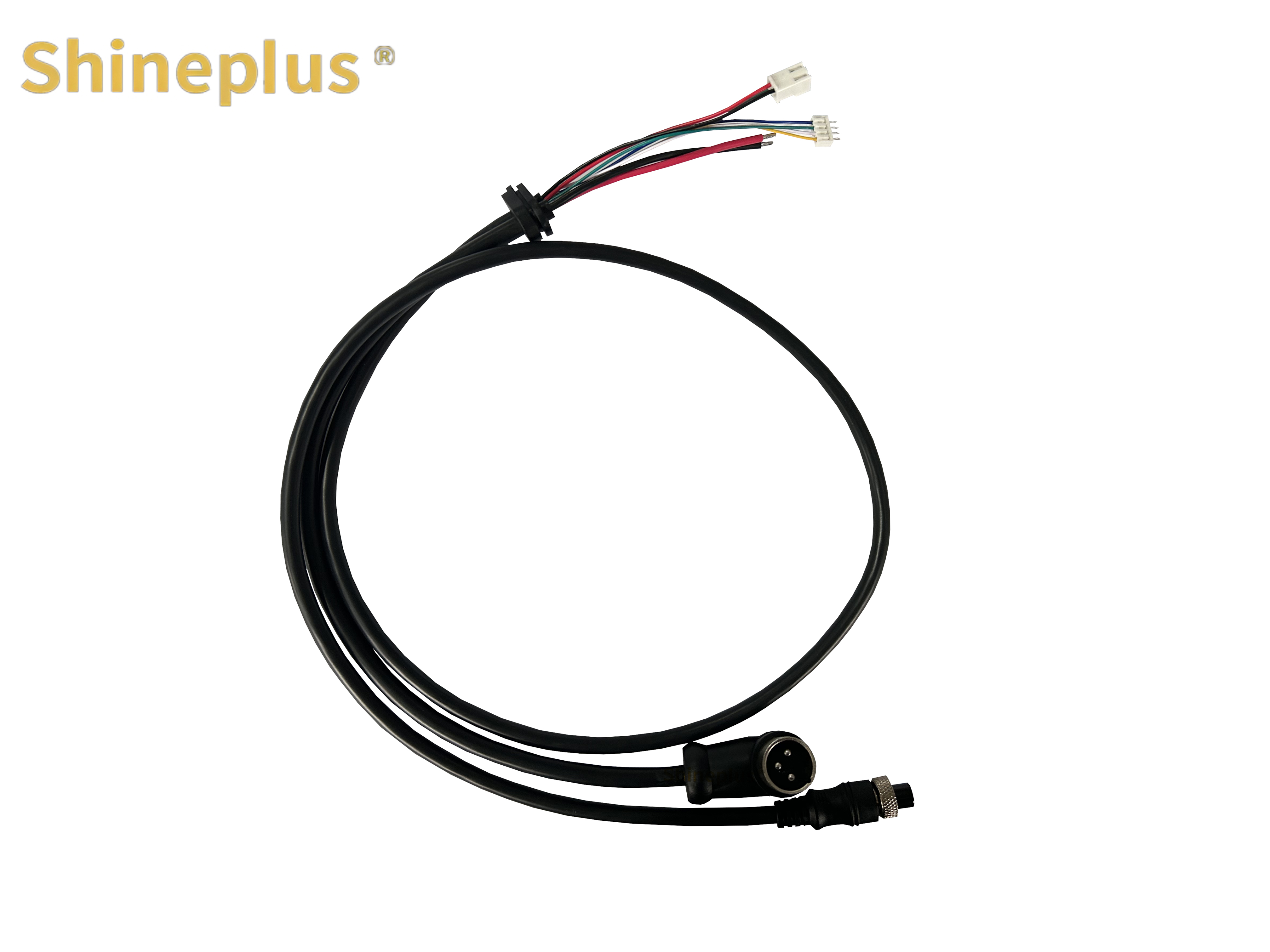

3. Picture of real products
4. Application area
I: Power tools and portable devices: This harness can be used to connect the batteries and power systems of power tools, portable devices such as electric scissors, electric screwdrivers, wireless handheld devices, etc. It can provide power supply and battery signal transmission to ensure the normal operation of the device and monitoring of charging status.
II: Uavs and aircraft: Battery wiring harnesses play an important role in Uavs and other aircraft. They connect the flight controller and the battery, provide power supply, battery monitoring and data transmission, and ensure the normal operation and flight safety of the aircraft.
III: Electric vehicles: In electric vehicles and e-bikes, battery wiring harnesses are used to connect the battery pack of an electric vehicle to the vehicle electrical system. They provide high-current power transmission and monitoring of battery status, ensuring proper operation of the powertrain of electric vehicles.
5. Features
I: Multi-function design: The battery harness adopts two-in-one design, which separates the power line and signal line, and has multi-function. It can transmit power and signals at the same time, meeting the needs of battery power and data transmission.
II: Anti-interference performance: The battery harness adopts an insulated anti-interference design to reduce the influence from external electromagnetic interference sources. This helps to maintain the stability and reliability of the signal and ensures the accuracy of data transmission.
III: Wide application: The battery harness is suitable for several fields and applications, such as power tools, portable electronic devices, drones, electric vehicles, solar and energy storage systems, and others.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
IV: Other equipment wire harnesses:
Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
|
|
