XLPE material 1 X 6AWG 125℃ 3000V high voltage tinned copper wire UL3871
1. Product description
XLPE material 1 X 6AWG 125℃ 3000V high voltage tinned copper wire UL3871 tinned copper wire is used. The tin plating treatment provides better conductivity and corrosion resistance while reducing the effects of oxidation and corrosion, increasing the life and reliability of the wires. This cable is capable of withstanding temperatures up to 125°C at continuous operating temperatures. This makes it suitable for high-temperature environments, such as applications in thermal industries and high-temperature equipment. XLPE is a high quality insulating material with good electrical properties and heat resistance. It is able to withstand voltage and current in high temperature environments and provides reliable electrical insulation.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
Product Name | XLPE material 1 X 6AWG 125℃ 3000V high voltage tinned copper wire UL3871 |
Product certification | Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
Product application | Industrial, comsumer electrics, medical, etc |
Temperature | 125 ℃ |
Aged condition | 158±1℃×168h |
Flame rated | FT2 |
Tensile strength | ≥13.79MPa Elongation:≥300% |
Percent of original tensile strength | ≥80% |
Percent of original elongation | 1~2 weeks |
After-sales service | Authentic guaranteed, factory outlets center |

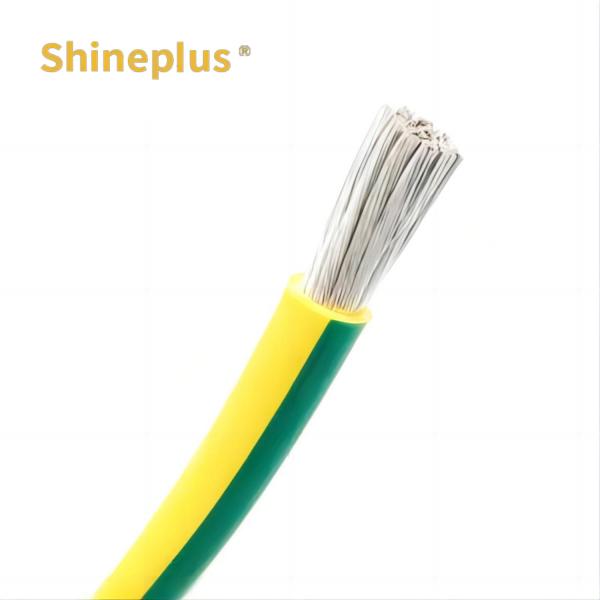

3. Picture of real products
4. Application area
I: These cables are suitable for flexible use under moderate mechanical stress and can be moved freely in dry, wet and damp rooms (but not in the open air) without tensile stress or forced movement. Suitable for use as measuring and control cables in tool machines.
II: High temperature applications: As the cable is able to withstand temperatures up to 125 ° C, it is useful in applications where resistance to high temperature environments is required. For example, it can be used in high-temperature processes, petrochemical equipment, metallurgical equipment, and thermal industries.
5. Feature
I: Effectively resist electromaganetic interference
II: Excellent insulation performance
III: Extensively oil resistant
IV: Flexible
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
|
|
