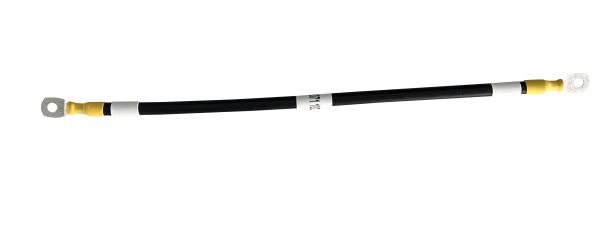

EV15E 10mm²1500V 105℃ silicone rubber black 250mm, waterproof, UL94V0 DC power line

1. Product description

EV15E 10mm²1500V 105℃ silicone rubber black 250mm, waterproof, UL94V0 DC power line silicone rubber is used as insulation material,

which has excellent abrasion resistance, corrosion resistance and oil resistance, as well as good flexibility and durability. With a cross-sectional

area of 10mm², the harness has a large conductive capacity and low resistance, enabling it to transmit a large current. The harness is rated at

1500V, which means it can withstand high voltage applications. This makes this harness ideal for applications that require high voltage

transmission, such as industrial equipment, energy systems, etc.

Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

3. Picture of real products

4. Application area

I: Electric Vehicles: Because the power harness is capable of high voltage (1500V) and high current (10A), as well as high temperature resistance (105 ° C) and water resistance, it is suitable for electric vehicle power transmission system, such as battery pack to electric motor connection, charging system, etc.

II: Industrial Automation: The high voltage and high current capabilities of this power harness make it suitable for high-power equipment in the field of industrial automation, such as robots, automated production lines, and factory equipment. The waterproof feature enables it to work reliably in wet and harsh environments.

III: New energy field: The power harness is suitable for power transmission and connection in new energy systems such as solar panels and wind power equipment. It can withstand high voltage and current, and has high temperature resistance and water resistance to adapt to different environmental conditions.

5. Feature

I: High flame retardant: The outer sheath material of the wire harness is UL94V0 certified, which has high flame retardant performance, can slow the spread of fire and provide higher safety.

II: High temperature resistance: The high temperature resistance grade of the harness is 105℃, which can work normally in high temperature environment without damage, and is suitable for high temperature applications.

III: Weather resistance and anti-aging performance: The power harness uses silicone rubber as insulation material, silicone rubber material has excellent weather resistance and anti-aging performance, can run stably for a long time under harsh environmental conditions.

6. Main products

I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.

II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.

III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.

IV: Other equipment wire harnesses:

Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.

Jiangsu Shineplus Precision Technology Co., Ltd. was established in 2021, located in Baipu, Rugao City, Nantong Town, 3000M² production

area. Specializing in the design and manufacture of cable components, designed to provide customers with a comprehensive wiring system.

The main product directions are: green energy, industrial automation equipment, medical physiotherapy Equipment and medical imaging

equipment, rail transit, communication facilities equipment wiring system and other fields.

In addition, Guangdong Xinfusheng Connection Technology Co., LTD., established in 2020, is located in Guangdong Hong Kong Industrial Park, Humen Town, Dongguan City, with a production area of 4500M² and 150 employees. Specializing in the design and manufacture of cable components, aiming to provide customers with comprehensive wiring system solutions, the main product directions are: mainly in the field of medical and health products, but also involving green energy, industrial automation, high precision equipment, communication connection and other fields.
