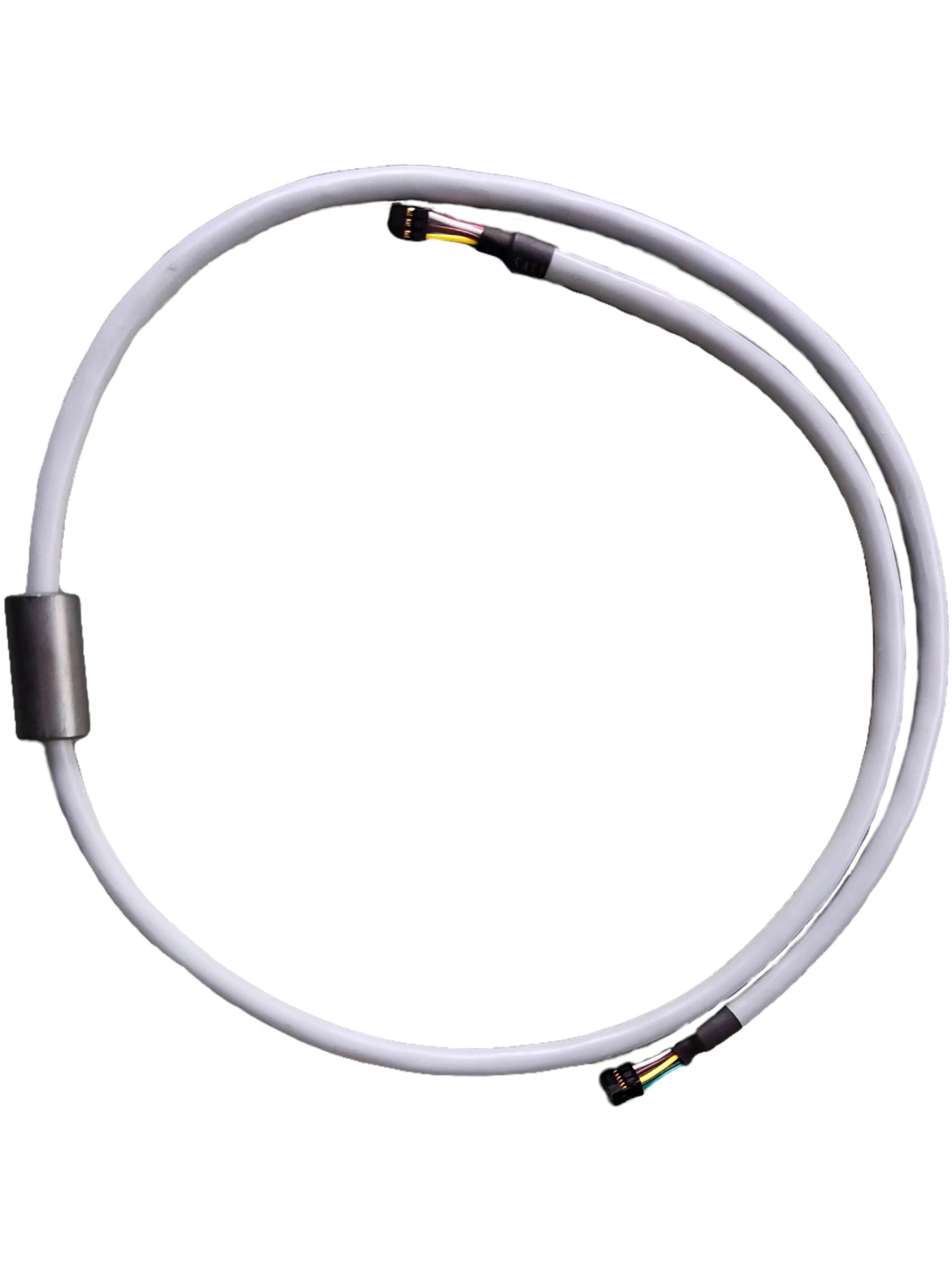

High frequency 6 pin transmission industrial wire harness with magnetic ring

1. Product description

High frequency 6 pin transmission industrial wire harness with magnetic ring with 6 pins for signal or power transmission. These pins can be

customized to meet the interface requirements of different applications. The harness has a magnetic ring to suppress electromagnetic interference.

The magnetic ring can absorb and suppress electromagnetic waves in the wire bundle, improving the quality and stability of the transmitted signal.

Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

3. Picture of real products

4. Application area

I: Communication equipment: The harness is suitable for all kinds of communication equipment, including wireless communication equipment, network equipment, sensors, etc. It is capable of transmitting high-frequency signals, ensuring reliable connection of communication equipment and high-quality signal transmission.

II: Medical equipment: This harness is suitable for high frequency signal transmission in medical equipment. It can connect medical instruments, monitoring devices, diagnostic devices, etc., ensuring high-quality signal transmission and reliable device operation.

III: Test and measurement equipment: This harness is suitable for high frequency signal transmission in test and measurement equipment. It can connect oscilloscopes, spectrum analyzers, signal generators and other equipment to provide reliable signal transmission and accurate test functions.

5. Feature

I: Magnetic ring design: The harness has a magnetic ring to suppress electromagnetic interference. The magnetic ring can absorb and suppress electromagnetic waves in the wire bundle, improving the quality and stability of the transmitted signal.

II: 6-pin transmission: The harness has 6 pins for signal or power transmission. These pins can be customized to meet the interface requirements of different applications.

6. Main products

I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.

II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.

III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compress or harness.

Jiangsu Shineplus Precision Technology Co., Ltd. was established in 2021, located in Baipu, Rugao City, Nantong Town, 3000M² production

area. Specializing in the design and manufacture of cable components, designed to provide customers with a comprehensive wiring system.

The main product directions are: green energy, industrial automation equipment, medical physiotherapy Equipment and medical imaging

equipment, rail transit, communication facilities equipment wiring system and other fields.

In addition, Guangdong Xinfusheng Connection Technology Co., LTD., established in 2020, is located in Guangdong Hong Kong Industrial Park, Humen Town, Dongguan City, with a production area of 4500M² and 150 employees. Specializing in the design and manufacture of cable components, aiming to provide customers with comprehensive wiring system solutions, the main product directions are: mainly in the field of medical and health products, but also involving green energy, industrial automation, high precision equipment, communication connection and other fields.
