0.5m 1500V automotive electrical wiring harness moisture proof

1. Product description

0.5m 1500V automotive electrical wiring harness moisture proof shield use of copper conductor works like a high energy rate,and molded

industrial wiring harness.Using high quality environmental protection TPU material, strong insulation, wear resistance and corrosion resistance.

With moisture-proof polyvinyl chloride (PVC) insulation, the harness has good moisture-proof properties and is able to maintain reliable electrical

connections in humid environments.With a rated voltage of 1500V, the harness can withstand high voltage loads and is suitable for automotive

electrical systems that need to transmit high voltages.

2. Product information

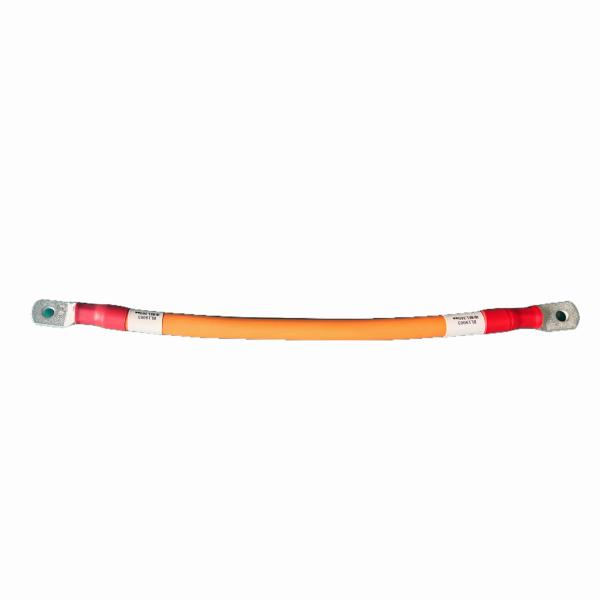

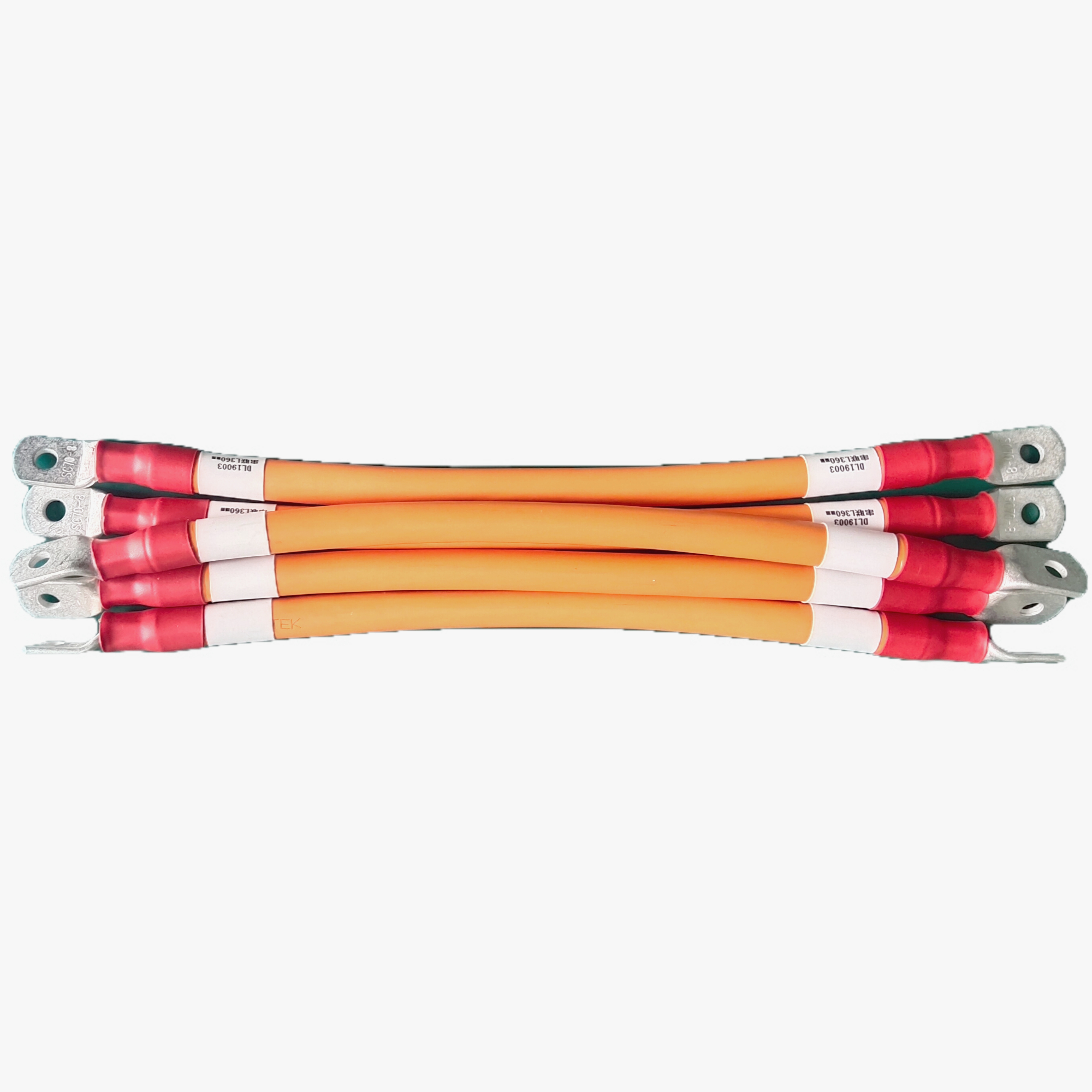

3. Picture of real products

4. Application area

I: Ignition system: This harness can be used to connect the ignition coil, spark plug and ignition control module. It transmits ignition signals and high voltage pulses to ensure proper ignition of each cylinder, providing reliable combustion capability.

II: Fuel injection system: Wiring harnesses can be used to connect fuel injectors (such as injectors, high pressure fuel pumps, etc.) and related sensors. It transmits high voltage power and control signals required by the injector, ensuring precise control of fuel injection and combustion efficiency.

III: Sensor system: This harness can be connected to a variety of engine sensors, such as oxygen sensors, intake temperature sensors, throttle position sensors, etc. By transmitting sensor signals, critical real-time data is provided to the engine control unit for adjusting fuel supply, ignition timing, and cylinder operating status.

5. Feature

I: High voltage

II: Humidity resistance

III: Good electrical insulation performance

6. Main products

I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.

II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.

III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.

IV: Other equipment wire harnesses:

Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.

Jiangsu Shineplus Precision Technology Co., Ltd. was established in 2021, located in Baipu, Rugao City, Nantong Town, 3000M² production

area. Specializing in the design and manufacture of cable components, designed to provide customers with a comprehensive wiring system.

The main product directions are: green energy, industrial automation equipment, medical physiotherapy Equipment and medical imaging

equipment, rail transit, communication facilities equipment wiring system and other fields.

In addition, Guangdong Xinfusheng Connection Technology Co., LTD., established in 2020, is located in Guangdong Hong Kong Industrial Park, Humen Town, Dongguan City, with a production area of 4500M² and 150 employees. Specializing in the design and manufacture of cable components, aiming to provide customers with comprehensive wiring system solutions, the main product directions are: mainly in the field of medical and health products, but also involving green energy, industrial automation, high precision equipment, communication connection and other fields.
