DC power line EV10mm² red 750mmPA bellow flame retardant automotive wiring harness
1. Product description
DC power line EV10mm² red 750mm PA bellow flame retardant automotive wiring harness the pressure of wire and terminal is MIN 1500N.
Connector customers customize on demand. Plug and play, flexible and firm, longer life.Waterproof grade: IP68.All the materials used
meet the requirements of environmental protection.The outer skin of the wire harness is made of PA (polyamide) material, which has flame
retardant performance. This means that in the event of flame or high temperature, the harness can inhibit flame spread and improve safety.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
Product Name | DC power line EV10mm² red 750mmPA bellow flame retardant automotive wiring harness |
Harness material | Pass ISO13485,ISO9001,ULand ROHS2.0 certification |
Product application | Assembly of internal equipment of various types of vehicles |
Length, color | Customized according to customer needs |
Samples | Samples confirmed first before mass production |
Serve | Whole-course specially-assigned follow-up, to provide fast and efficient service |
Test requirement | Bending resistance: ≥5 million times,Salt spray test: ≥72H,Tensile test 1500N,Flexing test |
MOQ | Negotiable |
After-sales service | Authentic guaranteed, factory outlets center |

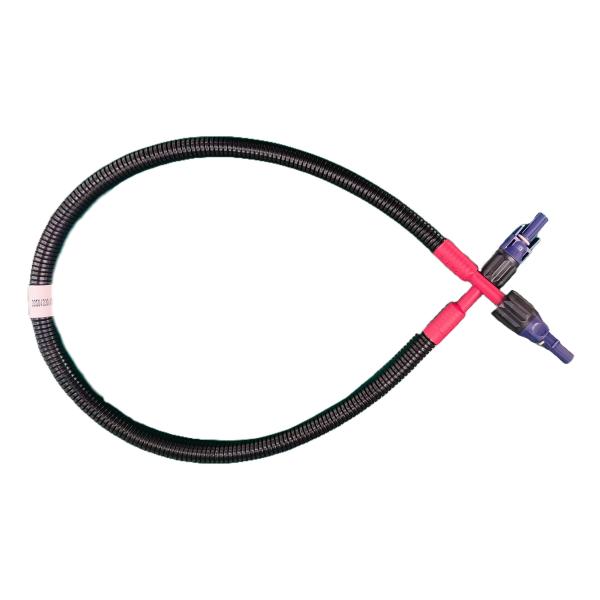

3. Picture of real products
4. Application area
I: Battery system: Wire harnesses can be used to connect the vehicle battery to the battery management system to transfer electrical energy from the battery to various electronic devices and systems in the vehicle.
II: Engine compartment: Wiring harnesses can be used for power transmission in the engine compartment of an automobile, including the engine control unit (ECU), ignition system, fuel injection system, etc.
III: In-car electronics: Wiring harnesses can be used to connect various electronic devices in the car, such as instrument panels, sound systems, navigation systems, air conditioning systems, etc.
5. Feature
I: Flame retardant property: The outer skin of the wire harness is made of PA (polyamide) material, which has flame retardant property. This means that the harness is able to suppress flame spread when exposed to flame or high temperature, improving safety.
II: High temperature resistance: the wire harness has good high temperature resistance, which can operate normally in high temperature environment such as automobile engine cabin and maintain stable power transmission.
III: Vibration resistance: The design of the harness takes into account the vibration and impact under the working conditions of the vehicle, and has good vibration resistance and can maintain the reliability of the connection.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
IV: Other equipment wire harnesses:
Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
|
|
