Waterproof And Environmental Protection PV Cable Harness 75mm MC4 Connector

1. Product description

Waterproof and environmental protection pV cable harness 75mm MC4 connector is a cable harness product specially designed for assembling

solar panel components. It consists of 75mm² PV cable and MC4 connector, which is waterproof, high temperature resistant, fire resistant, UV

resistant, wear resistant and other characteristics.

Waterproof and environmental protection pV cable harness 75mm MC4 connector is made of high quality lead-free environmental protection

materials, does not contain toxic and harmful substances, in line with RoHS, REACH and environmental protection requirements. At the same

time, Waterproof and environmental protection pV cable harness 75mm MC4 connector is covered with high-quality PVC sheath, which can

effectively prevent the cable from being damaged by external factors and avoid the occurrence of potential safety hazards such as electricity

leakage. And the waterproof performance of the harness can reach IP67 level, which can be used in harsh environment for a long time.

Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

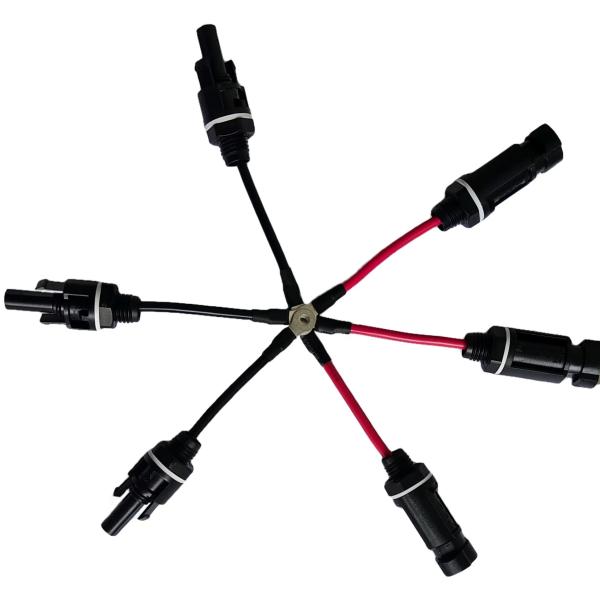

3. Picture of real products

4. Application area

I: Solar photovoltaic power generation system:Waterproof and environmental protection pV cable harness and its MC4 connector are widely used in solar photovoltaic power generation system. They are used to connect circuits between solar panels and between solar panels and inverters. Waterproof and environmental protection pV cable harness and connectors provides reliable power transmission and ensures efficient operation of the PV power generation system.

II: Solar lighting system: waterproof and environmentally friendly photovoltaic wiring harness can also be used in solar lighting systems, such as solar street lights, solar garden lights, etc. They connect solar panels and lighting devices to achieve green, efficient solar lighting.

III: Mobile applications: Waterproof and environmental protection pV cable harness and connector combination is suitable for the field of mobile applications, such as campers, motorhomes, etc. Waterproof and environmental protection pV cable harness connect to solar panels and mobile devices to charge batteries and provide renewable energy support.

5. Features

I: Efficient transmission: Waterproof and environmental protection pV cable harness use high-quality copper cores, which can provide low resistance and high conductivity to ensure efficient transmission of electric energy. The MC4 connector is also designed to optimize current transfer efficiency and reduce energy losses.

II: Durability: Waterproof and environmental protection pV cable harness and MC4 connectors offer excellent durability and anti-aging capabilities. Waterproof and environmental protection pV cable harness can withstand long periods of outdoor use, resist harsh environmental conditions such as UV rays, high and low temperatures, and maintain stable performance and reliable connections.

III: Easy to install: MC4 connectors are designed for quick connection, easy to install and remove. They have a plug-in connection mode, without welding or special tools, saving installation time and cost.

6. Main products

I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.

II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.

III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.

IV: Other equipment wire harnesses:

Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.

Jiangsu Shineplus Precision Technology Co., Ltd. was established in 2021, located in Baipu, Rugao City, Nantong Town, 3000M² production

area. Specializing in the design and manufacture of cable components, designed to provide customers with a comprehensive wiring system.

The main product directions are: green energy, industrial automation equipment, medical physiotherapy Equipment and medical imaging

equipment, rail transit, communication facilities equipment wiring system and other fields.

In addition, Guangdong Xinfusheng Connection Technology Co., LTD., established in 2020, is located in Guangdong Hong Kong Industrial Park, Humen Town, Dongguan City, with a production area of 4500M² and 150 employees. Specializing in the design and manufacture of cable components, aiming to provide customers with comprehensive wiring system solutions, the main product directions are: mainly in the field of medical and health products, but also involving green energy, industrial automation, high precision equipment, communication connection and other fields.
